Bagging Packing Controller Indicator for Granule, With MODBUS RTU, HMI Display, RS232, RS485, USB Port
Main Application:
- Ration Packing Scale with 2-weighing-hopper&1/2-bag.
- Ration Packing Scale with 2-weighing-bag.
Main Features
- EMC design with high anti-jam for industrial environment.
- DC24V power input with reverse polarity protection.
- Cortex-A8 CPU with 600MHz Clock, 128M Flash.
- 7” [800×480] or 10.2” [1024×600] TFT touch panel.
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- High sampling frequency 800Hz.
- Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
- Auto Zero Tracking.
- Fall Value Auto Correction.
- Auto Pause for Deviation Alarm.
- Auto Re-feed for Negative Deviation Alarm.
- Target Batch Count & Target Batch Weight Control.
- 3-speed[high/medium/low] feeding control by DOs or AOs.
- Definable DI/DO/AO/COM[Communication Port].
- Recipe Number: 100.
Technical Specification:
| Power Supply | DC24V±20%, Max. 10W |
| Display | 16-bit Color screen with 800×480[7”] or 1024×600[10.2”] pixel and LED backlight |
| Weight Display Range | -99,999~+999,999 |
| Scale Capacity | Setting Range 1~999,999 |
| Scale Division | Optional 1, 2, 5, 10, 20, 50 |
| Display Resolution | 1/100,000 |
| Weight Unit | Optional g, kg, t, lb[pound], oz[ounce], UserSet |
| Loadcell Interface | Connection Quantity | 16 Loadcells (350Ω) |
| Excitation Voltage/Max. Current | DC5V, 250mA |
| Signal Input Range | 0~12.5mV |
| Output Sensitivity of Loadcell | 1.0~2.5mV/V |
| Sampling Frequency | 800Hz |
| Non-linearity | 0.005%FS |
| Switch&Analog Signal Interface | DI | 9 Normally Open Switch Inputs |
| DO | 18 Normally Open Transistor Switch Outputs [DO]: DC24V, 500mA |
| AO | 2 AO:0~10V/Max.50mA |
| Digital Communication Interface | COM1 | RS232 |
| COM2 | RS485 |
| USB1 | For connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk. |
Size Option:
7 Inch One:
Outline Size [W×H×D]: 226.5 × 163 × 36 mm
Panel Cut-out Size [W×H]: 215 × 152 mm
10 Inch One:
Outline Size [W×H×D]: 274 × 193 × 40 mm
Panel Cut-out Size [W×H]: 261 × 180 mm

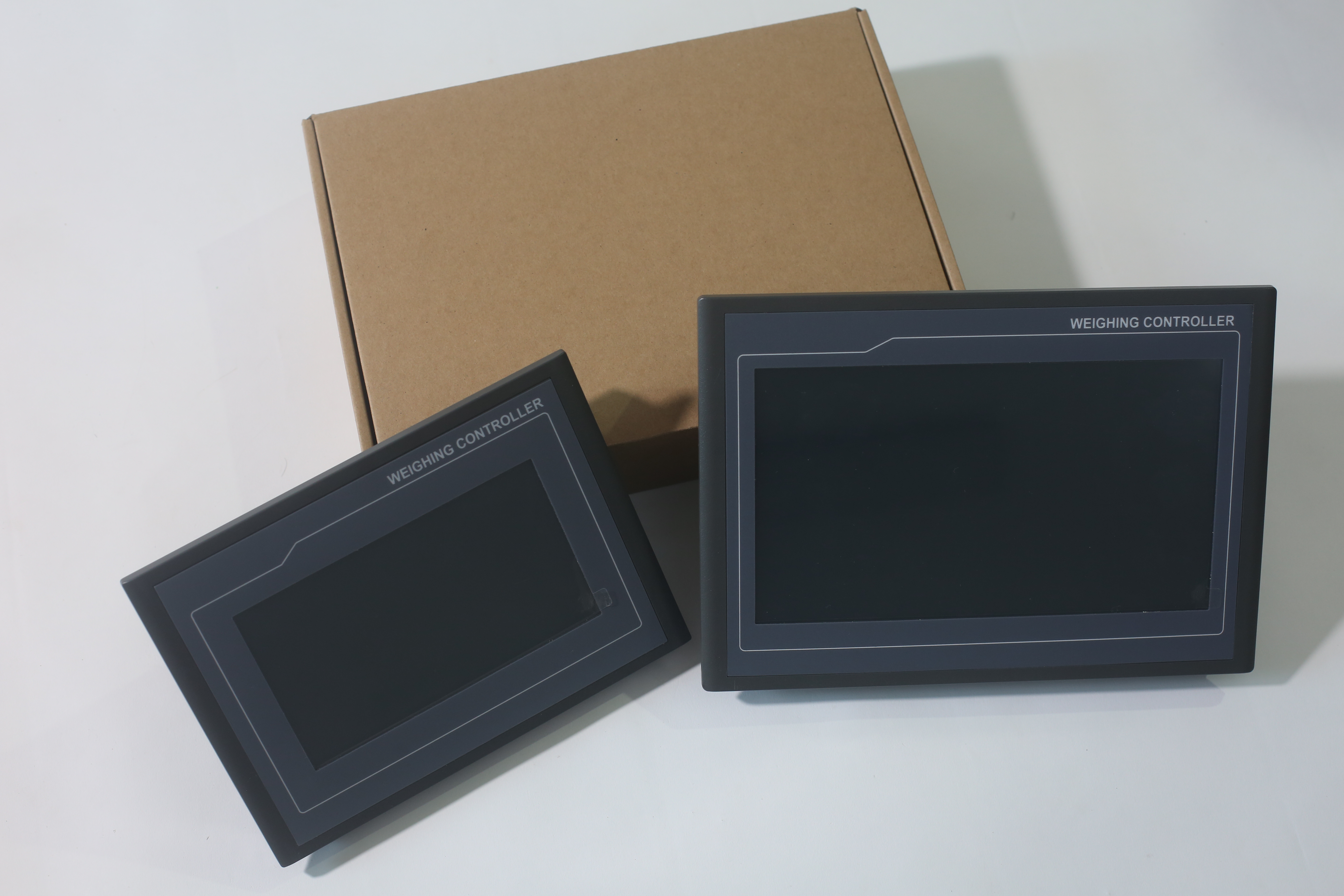

Package:

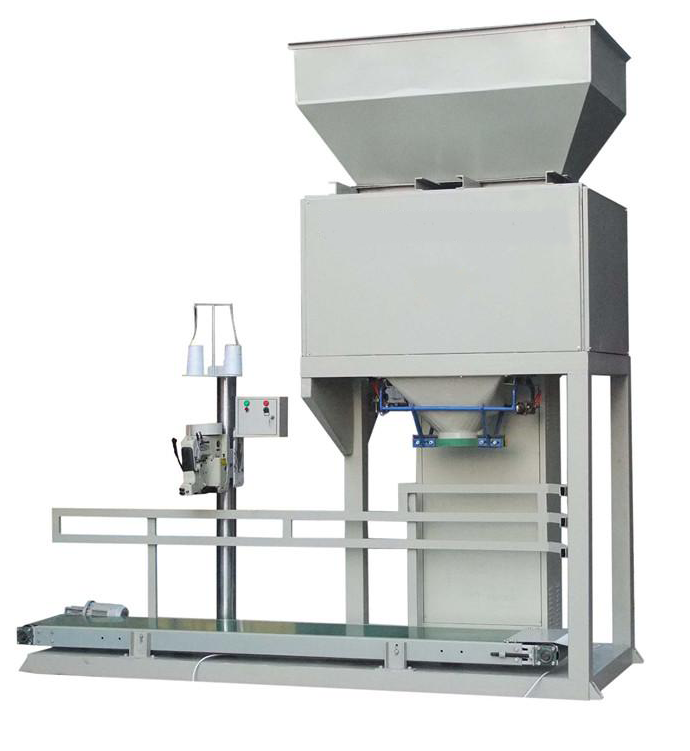

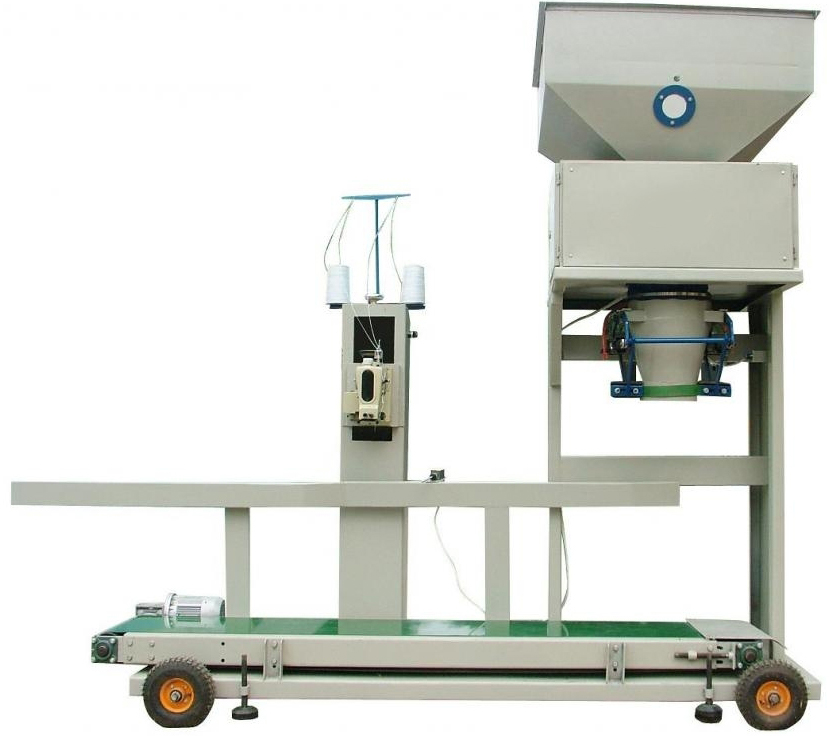

Application:
FAQ:
1. Sample is Available?
No. This product do not support free sample (Standard one).
2. What detailed information do I need to provide if I want to place an order?
We need to know the following information: accuracy, Quantity, special requirements if you have, etc.
3. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
4. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.
5.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
6. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
7. How long is the warranty period?
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
