Name: Multifunction Mini Crane Weight Indicator
Brand: Supmeter
Price: 1 USD

Brand Name : Supmeter

Model Number : BST106-B60S[C]

Certification : CE

Place of Origin : China

MOQ : 5pcs

Payment Terms : T/T, Western Union

Delivery Time : 5 work days

Packaging Details : carton

Power Supply : AC24V±20%

Sampling Frequency : 640Hz

Display : 5 Red Led Digital Tubes for English&Digit Display

Max. Connection number of Loadcell : 8 Loadcells (350Ω)

Contact Now

Multifunction 4 - 20Am Mini Digital Scale Indicator,Crane Overload Protection Controller With English And Digit Display

Main Application

Crane[Wheel Crane, Travelling Crane,Frame Crane,Bridge Crane and so on] Overloade PRotection

Sound-light Pre-alarm for Weight Hight Limit

Delay-stop for Weight Higher Limit

Emergency-stop for Weight Highest Limit

Main Features:

1:32-bit ARM CPU with 48MHz clock and high arithmetic speed.

2: Auto Zero Tracking

3: Load Calibration & Data Calibration

4: Definable AO/COM[Communication Port]

Technical Specification:

Power Supply	AC24V±20%
Display	5 Red Led Digital Tubes for English&Digit Display
Sampling Frequency	640Hz
A/D Convert	24-bit
Keypad	4 keys for Shortcut mode operation with key tone
Excitation Voltage Output of Loadcell	DC12V
Max. Connection number of Loadcell	8 Loadcells (350Ω)
[mV]Signal Input Range	0-19.5mV
DO	2 Normally Open/Closed Relays:AC250V/DC24v,1A
AO	1Analog Signal Output: 4~20mA.

Verfication Accuracy	0.03%
Static Weighing/Force Measuring Accuracy	0.2%~0.5%

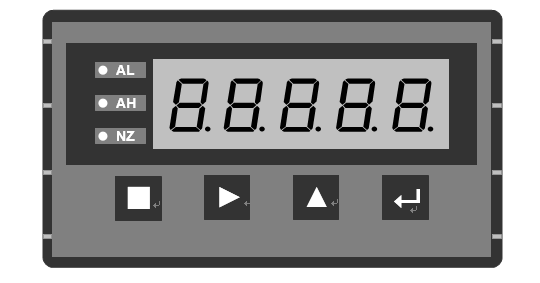

Operation Interface Diagram:

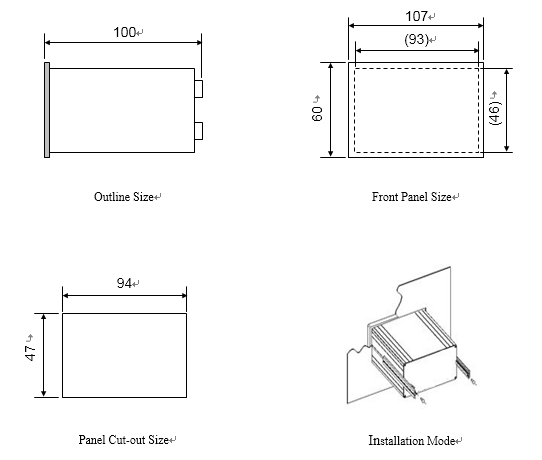

Installation:

Package:

Multifunction Mini Crane Weight Indicator
