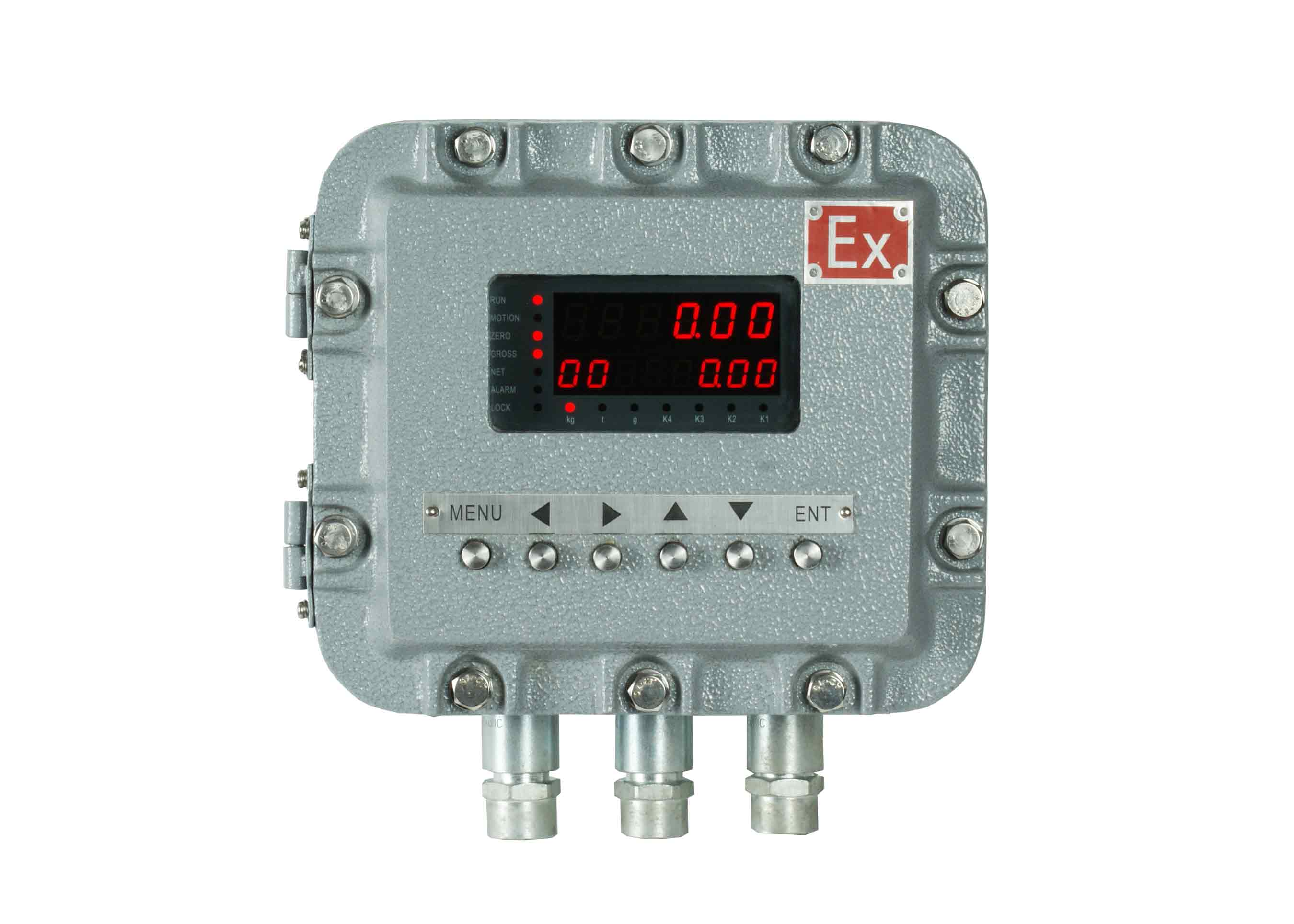

Explosion Proof Electronic Weight Indicator , Force Measurement Indicator DO Alarm Output

Product Categories
CHANGSHA SUPMETER TECHNOLOGICAL CO.,LID
Contact Now

Explosion Proof Electronic Weight Indicator , Force Measurement Indicator DO Alarm Output

  • 1
  • 2
  • 3

Brand Name : SUPMETER

Model Number : BST106-B60[F]EX

Certification : CE

Place of Origin : CHINA

MOQ : 1 UNIT

Price : 600USD PER UNIT

Payment Terms : T/T

Supply Ability : 1000 UNIT PER MONTH

Delivery Time : 5 WORKING DAYS

Packaging Details : CARTON PACKING

Material : steel

Display : Positive and Negative Value

Communication : RS485

Weight : 4kg

Force Signal Input Range : 0~22.5mV

Panel Cut-out Size [W×H] : 94 × 47 mm

Contact Now

Explosion proof Force Measuring Controller Power:DC24V Commnication Port :RS232 AO[4-20mA]

Main Applications

  •  Positive&Negative Direction Real-time Force Value Display.
  •  Peak Value Detection / Display Holding.
  •  DO Alarm Output.
  •  Force Signal AO/Digit Transmission.
  •  Positive/Negative/Double Direction Modes.
  •  Threshold / DI Pulse / DI Switch / DI Jump Start&Stop Modes
  • Technical Specification
1 Power Supply: DC24V±20%, Max. 5W.
2 Loadcell Excitation Voltage/Current: DC9V/120mA.
3 4 Loadcells[350Ω] connectable.
4 Force Signal Input Range: 0~22.5mV.
5 6 Normally Open Switch Inputs [DI].
6 5 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.
7 1 Analog Signal Output [AO]: 4~20mA, 0.05%FS.
8 COM1: RS232.
9 COM2: RS485.
10 Connect Host IPC[Modbus] & Remote Display.
11 Outline Size [W×H×D]: 110 × 62 × 150 mm.
12 Panel Cut-out Size [W×H]: 94 × 47 mm.
13 Operating Temperature: -25℃～+45℃
14 Protection Level of Front Panel: IP65.
15 Accuracy Grade: III.
16 Verification Accuracy: 0.03%.
17 Static Force Measuring Accuracy: 0.2%~0.5%.

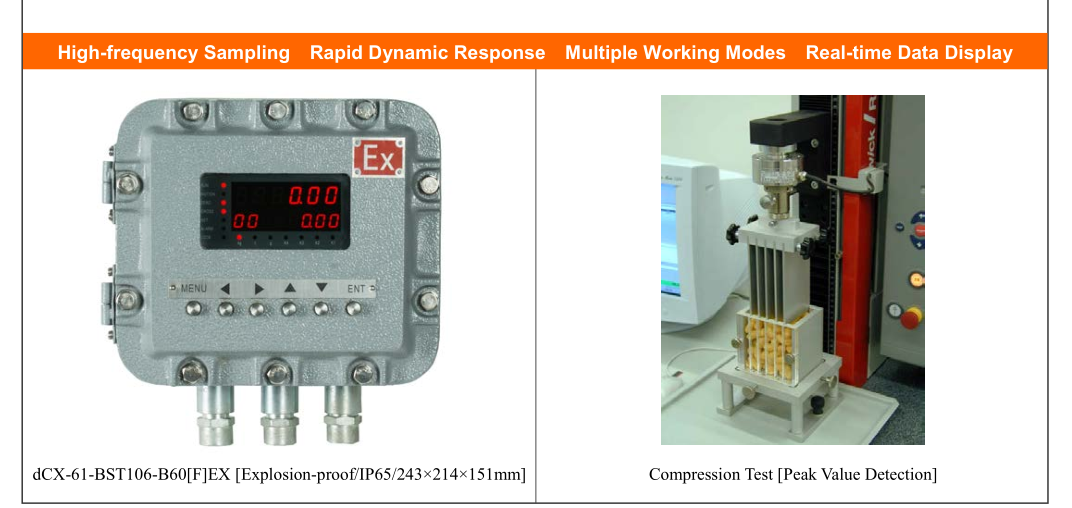

Explosion Proof Electronic Weight Indicator , Force Measurement Indicator DO Alarm Output

Main Specification:

  • EMC design with high anti-jam for industrial environment.
  •  DC24V power input with reverse polarity protection.
  •  32-bit ARM CPU with 48MHz clock & high arithmetic speed.
  •  6+8 Red LED digital tubes for English&digit display.
  •  24-bit ∑-△ADC with internal resolution 1/1,000,000.
  •  High sampling frequency 3200Hz.
  •  Optional Special Anti-vibration Digital Filtering Algorithm for precise force measuring, stable display and rapid response
  •  Auto Zero Tracking.
  •  Load Calibration, Data Calibration & Segmenting Correction.
  •  Definable AO/COM[Communication Port].

Explosion Proof Electronic Weight Indicator , Force Measurement Indicator DO Alarm Output

Optional:

1 definable AO(4-20mA)

  • Operating Specification
  • Operating Voltage
  • Model Panel-mounting: DC24V±20%.
  • Model Explosion-proof: AC110~240V, 50/60Hz.
  • Max. Power Consumption: 5W.
  • Outline Size
  • Model Panel-mounting: 110×62×150mm [W×H×D].
  • Model Explosion-proof: 256×290×166mm [W×H×D].
  • Panel Cut-out Size
  • Model Panel-mounting: 94×47 mm [W×H].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Application Environment of Model Explosion-proof
  • Explosion gas environment: Zone 1&2.
  • Classes of explosion gas mixture: IIA, IIB.
  • Temperature grades of explosion gas mixture: T1~T6.
  • Ex-mark: Ex d IIB T6 Gb.
  • Protection Level
  • Front Panel of Model Panel-mounting: IP65.
  • Model Explosion-proof: IP65.
  • Weight
  • Model Panel-mounting: Approx. 0.5kg.
  • Model Explosion-proof: Approx. 9.2kg.
