Double Hopper/Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)
Main Features:
1. Suitable for Ration Packing Scale with optional modes 1-Bucket Scale, 1-Bag Scale, 2-Bucket Scale[1-Bag] , 2-Bucket Scale[2-Bag] and 2-Bag Scale.
2. EMC design with high anti-jamming capability, suitable for industrial environment.
3. Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
4. 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
7”Touch Screen
Outline Size: 226.5×163×56mm [W×H×D].
Window Size: 153.6×86.64mm [W×H].
Box Body Size: 213×150mm [W×H].
Panel Cut-out Size: 215×152mm [W×H].
Weight: Approx. 0.72kg.
10.2” Touch Screen
Outline Size: 274×193×56mm [W×H×D].
Window Size: 220.8×132.9mm [W×H].
Box Body Size: 259×178 [W×H].
Panel Cut-out Size: 261×180mm [W×H].
Weight: Approx. 1.2kg.
User Login Interface
| Name | Operation | Note |
| 【Login】 | User Login. Exfactory Passwords: - Operator: None.
- Engineer: 0.
| Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password. |
| 【User Name】 | After password inputted, the matching User Name will be displayed. | - Operator: User with lowest authorization.
- Engineer: User with higher authorization.
- Administrator: User with highest authorization.
|
| 【Operate】 | Enter ‘Main User Interface’. | Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff. |

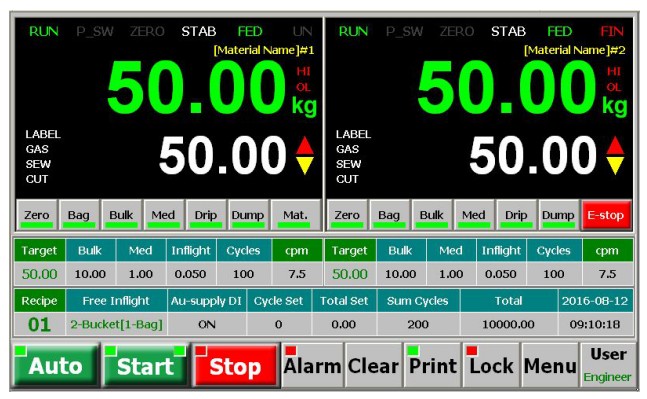

Main User Interface
Technical Specifications
Power Supply: DC24V±20%, Max. 10W.
Loadcell Excitation Voltage/Current: DC5V/250mA.
16 Loadcells[350Ω] connectable.
Weighing Signal Input Range: 0~12.5mV.
9 Normally Open Switch Inputs [DI].
18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
2 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
COM&COM1: RS232; COM2: RS485.
USB1: Connect mouse, software download, data backup.

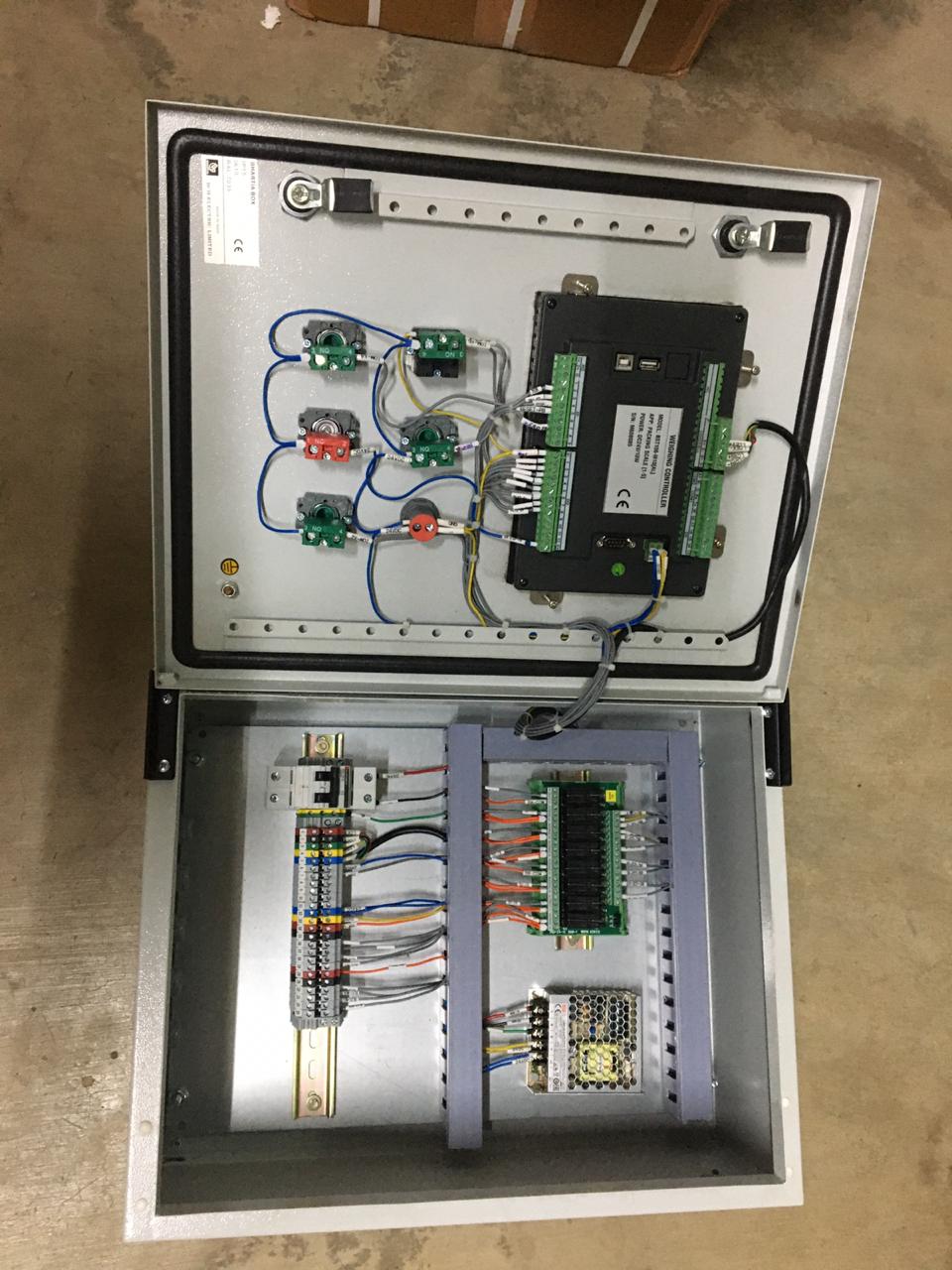

Installation Mode
Package:
Delivery
Product Tags:
|
|
EMC Design Single Hopper Double Hopper Bagging Controller Images
|
