7 Inch 10 Inch Display DO Di Packaging Bagging Controller

  • 1
  • 2
  • 3

Brand Name : SUPMETER

Model Number : BST106-M10[BH]

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : 298usd/pcs

Payment Terms : T/T, Western Union, L/C, D/A, D/P

Supply Ability : 200pcs per month

Delivery Time : 1~10 working days

Packaging Details : 1pcs/box

Customization : Available

Application : Single Scale Mode & Double Scale Mode

Com1 : RS232

Static Weighing Accuracy : 0.2%~0.5%

Packing Accuracy : 0.2%~0.5%

IP Grade : IP65

Contact Now

7 Inch 10 Inch Display Double Hopper/Bag Filling Controller, High Speed With DO Di Packaging Controller

 Ration Packing Scale with 2-weighing-hopper&1/2-bag.
 Ration Packing Scale with 2-weighing-bag.

Technical Specifications
 Power Supply: DC24V±20%, Max. 10W.
 Loadcell Excitation Voltage/Current: DC5V/250mA.
 16 Loadcells[350Ω] connectable.
 Weighing Signal Input Range: 0~12.5mV.
 9 Normally Open Switch Inputs [DI].
 18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
 2 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
 COM&COM1: RS232; COM2: RS485.
 USB1: Connect mouse, software download, data backup.

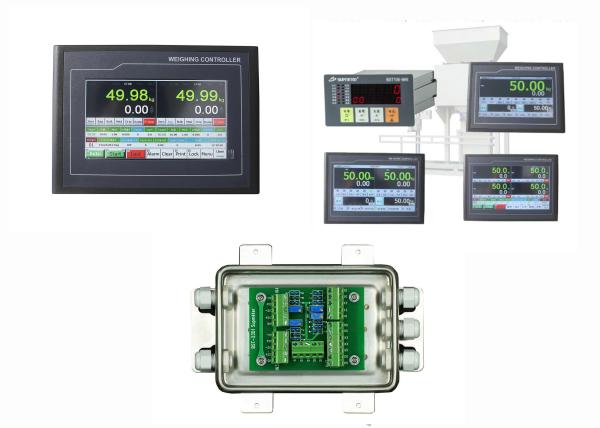

7 Inch 10 Inch Display DO Di Packaging Bagging Controller

Double Hopper/Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)

Main Features:

1. Suitable for Ration Packing Scale with optional modes 1-Bucket Scale, 1-Bag Scale, 2-Bucket Scale[1-Bag] , 2-Bucket Scale[2-Bag] and 2-Bag Scale.

2. EMC design with high anti-jamming capability, suitable for industrial environment.

3. Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.

4. 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.

7 Inch 10 Inch Display DO Di Packaging Bagging Controller

7 Inch 10 Inch Display DO Di Packaging Bagging Controller

7”Touch Screen

Outline Size: 226.5×163×56mm [W×H×D].

Window Size: 153.6×86.64mm [W×H].

Box Body Size: 213×150mm [W×H].

Panel Cut-out Size: 215×152mm [W×H].

Weight: Approx. 0.72kg.

10.2” Touch Screen

Outline Size: 274×193×56mm [W×H×D].

Window Size: 220.8×132.9mm [W×H].

Box Body Size: 259×178 [W×H].

Panel Cut-out Size: 261×180mm [W×H].

Weight: Approx. 1.2kg.

User Login Interface

Name Operation Note
【Login】

User Login.

Exfactory Passwords:

  • Operator: None.
  • Engineer: 0.
  • Administrator: 1.
Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password.
【User Name】 After password inputted, the matching User Name will be displayed.
  • Operator: User with lowest authorization.
  • Engineer: User with higher authorization.
  • Administrator: User with highest authorization.
【Operate】 Enter ‘Main User Interface’. Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff.

Main User Interface

7 Inch 10 Inch Display DO Di Packaging Bagging Controller

Installation Mode

7 Inch 10 Inch Display DO Di Packaging Bagging Controller

Package:

7 Inch 10 Inch Display DO Di Packaging Bagging Controller

Delivery

7 Inch 10 Inch Display DO Di Packaging Bagging Controller

7 Inch 10 Inch Display DO Di Packaging Bagging Controller
